Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.7457 GeV2 |
|---|---|
| xb : | 0.4471 |
| -t: | 1.3234 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

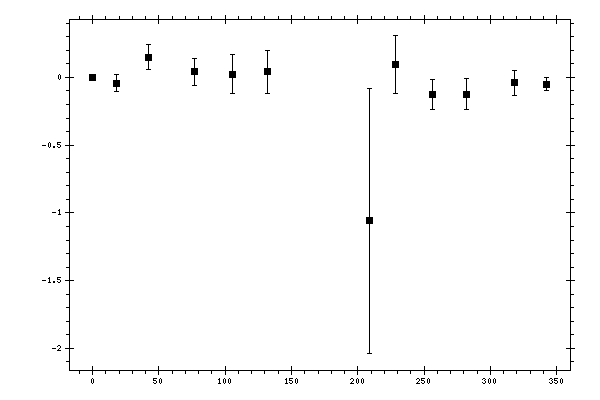

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 17.8832 | -0.0425 | 0.0634 |
| 41.8204 | 0.1501 | 0.0934 |
| 76.5442 | 0.0409 | 0.101 |
| 105.6343 | 0.0252 | 0.1418 |
| 131.7227 | 0.0404 | 0.1608 |
| 0 | 0 | 0 |
| 208.9105 | -1.0578 | 0.9773 |
| 228.2573 | 0.0931 | 0.2138 |
| 256.2978 | -0.126 | 0.1143 |
| 282.354 | -0.1241 | 0.1158 |
| 317.9999 | -0.0403 | 0.0938 |
| 342.2324 | -0.0489 | 0.0462 |
