Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.217 GeV2 |
|---|---|
| xb : | 0.3215 |
| -t: | 0.1719 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

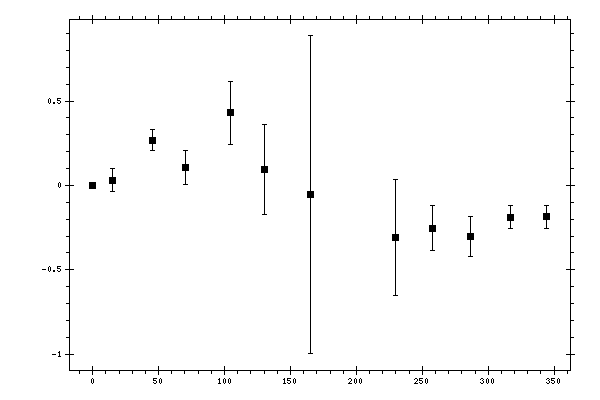

Measured data:
|
φ,
deg |
A,
dimensionless |
Stat. error,
dimensionless |
|---|---|---|
| 15.0743 | 0.031 | 0.0693 |
| 45.148 | 0.2685 | 0.0638 |
| 70.6973 | 0.105 | 0.1008 |
| 104.5422 | 0.4296 | 0.1853 |
| 130.0874 | 0.0942 | 0.2661 |
| 165.214 | -0.0535 | 0.9402 |
| 0 | 0 | 0 |
| 229.9826 | -0.309 | 0.3446 |
| 257.9601 | -0.2524 | 0.1358 |
| 286.5947 | -0.3014 | 0.1169 |
| 317.1111 | -0.188 | 0.0673 |
| 344.0522 | -0.1868 | 0.0687 |
