Parameter (X axis): ψ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), rad |
Click here to get data in text file, delimited with tabs.

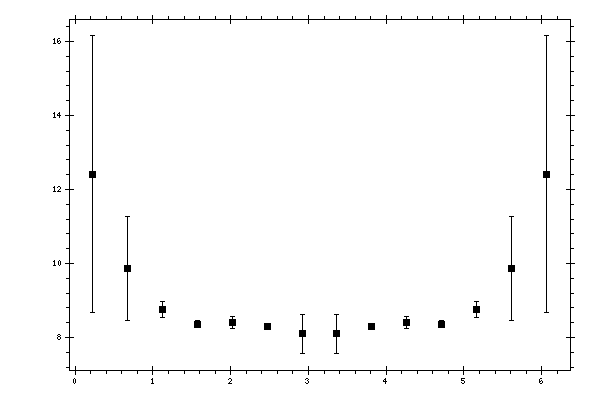

Measured data:
|
ψ(p),
rad |
dσ/dψ(p),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 0.224399 | 12.4171 | 3.73735 |
| 0.673198 | 9.86575 | 1.41404 |
| 1.122 | 8.75003 | 0.212429 |
| 1.5708 | 8.35593 | 0.0948896 |
| 2.0196 | 8.41194 | 0.168566 |
| 2.46839 | 8.29876 | 0.0719323 |
| 2.91719 | 8.09994 | 0.520417 |
| 3.36599 | 8.09989 | 0.520392 |
| 3.81479 | 8.29876 | 0.0719323 |
| 4.26359 | 8.41195 | 0.168561 |
| 4.71239 | 8.35595 | 0.0948796 |
| 5.16119 | 8.75004 | 0.212433 |
| 5.60999 | 9.86575 | 1.41404 |
| 6.05879 | 12.4172 | 3.73739 |
