Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

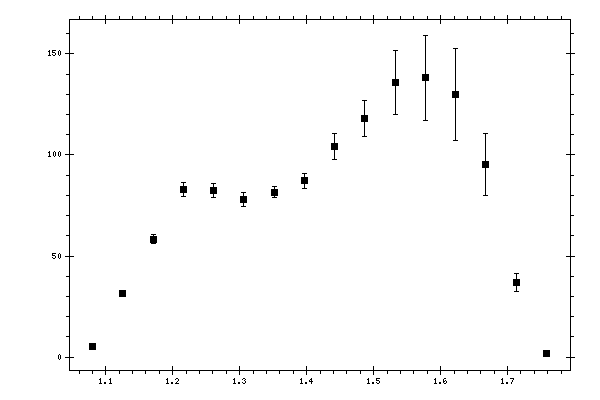

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.08041 | 5.18509 | 0.126015 |
| 1.12557 | 31.3465 | 1.32962 |
| 1.17074 | 58.3802 | 2.16262 |
| 1.2159 | 82.8542 | 3.54293 |
| 1.26106 | 82.2252 | 3.42068 |
| 1.30623 | 77.9937 | 3.34753 |
| 1.35139 | 81.6426 | 2.50467 |
| 1.39655 | 87.1889 | 3.61496 |
| 1.44172 | 104.146 | 6.53367 |
| 1.48688 | 117.889 | 9.01333 |
| 1.53204 | 135.754 | 15.9325 |
| 1.57721 | 138.044 | 20.8263 |
| 1.62237 | 129.773 | 22.6177 |
| 1.66753 | 95.1909 | 15.4159 |
| 1.7127 | 36.9211 | 4.32898 |
| 1.75786 | 1.99458 | 0.0211416 |
