Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

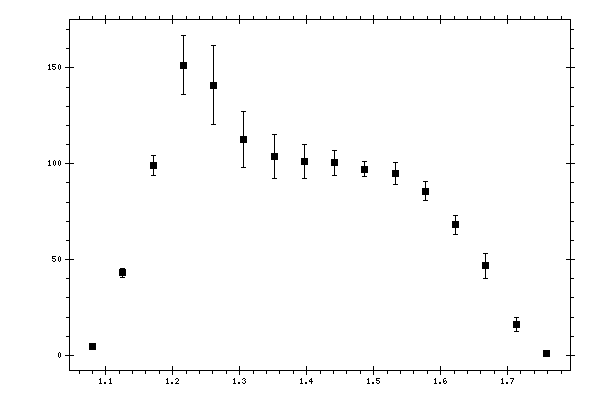

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.08041 | 4.4188 | 0.198228 |
| 1.12557 | 43.0576 | 2.31711 |
| 1.17074 | 98.8716 | 5.28291 |
| 1.2159 | 151.334 | 15.3588 |
| 1.26106 | 140.979 | 20.7066 |
| 1.30623 | 112.604 | 14.6266 |
| 1.35139 | 103.901 | 11.3807 |
| 1.39655 | 101.19 | 8.95681 |
| 1.44172 | 100.371 | 6.76957 |
| 1.48688 | 97.0773 | 3.83978 |
| 1.53204 | 94.8624 | 5.57283 |
| 1.57721 | 85.658 | 5.09465 |
| 1.62237 | 68.1466 | 5.09065 |
| 1.66753 | 46.7709 | 6.40291 |
| 1.7127 | 16.0371 | 3.60465 |
| 1.75786 | 1.25027 | 0.0678703 |
