Parameter (X axis): θ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

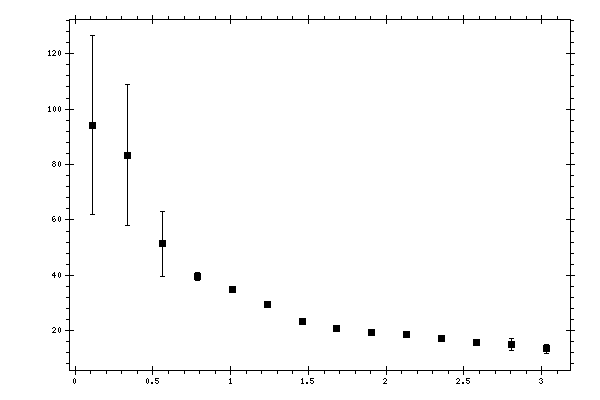

Measured data:
|
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 94.1986 | 32.2566 |
| 0.336599 | 83.2947 | 25.4478 |
| 0.560999 | 51.3123 | 11.6773 |
| 0.785398 | 39.5488 | 1.47781 |
| 1.0098 | 34.7944 | 0.699129 |
| 1.2342 | 29.3647 | 0.474966 |
| 1.4586 | 23.3491 | 0.409631 |
| 1.683 | 20.6372 | 0.444496 |
| 1.9074 | 19.3164 | 0.253177 |
| 2.1318 | 18.7751 | 0.265563 |
| 2.35619 | 17.2378 | 0.262874 |
| 2.58059 | 15.8388 | 0.815864 |
| 2.80499 | 15.0709 | 2.18085 |
| 3.02939 | 13.4558 | 1.55234 |
