Parameter (X axis): θ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb
Parameter (X axis): θ(π+), rad |
Click here to get data in text file, delimited with tabs.

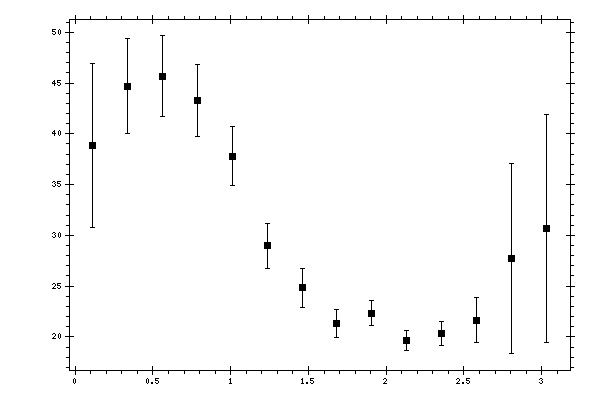

Measured data:
|
θ(π+),
rad |
dσ/d(−cos(θ(π+))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 38.8595 | 8.07145 |
| 0.336599 | 44.6825 | 4.69522 |
| 0.560999 | 45.6859 | 3.9635 |
| 0.785398 | 43.2491 | 3.56136 |
| 1.0098 | 37.8121 | 2.87004 |
| 1.2342 | 28.9548 | 2.19849 |
| 1.4586 | 24.8454 | 1.91281 |
| 1.683 | 21.3083 | 1.36054 |
| 1.9074 | 22.3403 | 1.20192 |
| 2.1318 | 19.6684 | 0.973104 |
| 2.35619 | 20.338 | 1.15582 |
| 2.58059 | 21.65 | 2.22392 |
| 2.80499 | 27.7414 | 9.34405 |
| 3.02939 | 30.6442 | 11.2227 |
