Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcb/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8875 GeV |
|---|
|

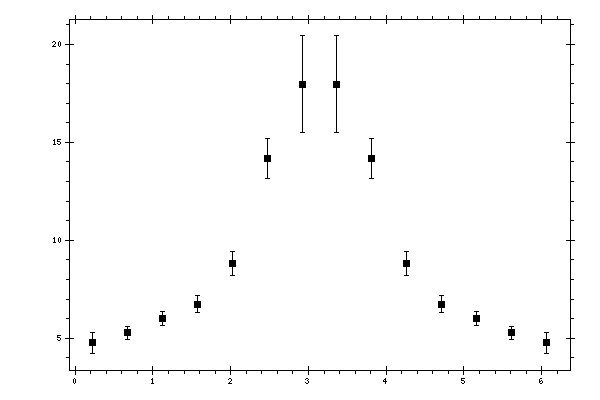

Observable quantity measured (Y axis): dσ/dψ(π+), mcb/rad
Parameter (X axis): ψ(π+), rad |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
rad |
dσ/dψ(π+),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 0.224399 | 4.76339 | 0.525461 |
| 0.673198 | 5.27755 | 0.332433 |
| 1.122 | 5.98951 | 0.358533 |
| 1.5708 | 6.73963 | 0.423311 |
| 2.0196 | 8.81276 | 0.625349 |
| 2.46839 | 14.1828 | 1.02813 |
| 2.91719 | 17.9604 | 2.4799 |
| 3.36599 | 17.9605 | 2.47995 |
| 3.81479 | 14.1828 | 1.02813 |
| 4.26359 | 8.81279 | 0.625364 |
| 4.71239 | 6.73962 | 0.423306 |
| 5.16119 | 5.98951 | 0.358533 |
| 5.60999 | 5.27758 | 0.332448 |
| 6.05879 | 4.76327 | 0.525405 |
