Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9125 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

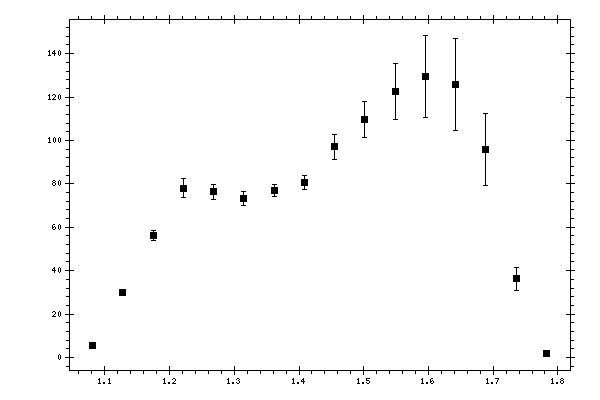

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.08119 | 5.37521 | 0.17902 |
| 1.12792 | 29.9022 | 1.11691 |
| 1.17464 | 56.2235 | 2.29999 |
| 1.22137 | 78.0077 | 4.32568 |
| 1.2681 | 76.2686 | 3.53018 |
| 1.31482 | 73.1405 | 3.29861 |
| 1.36155 | 76.8265 | 2.84121 |
| 1.40827 | 80.6321 | 3.35242 |
| 1.455 | 97.0439 | 5.82395 |
| 1.50172 | 109.687 | 8.19614 |
| 1.54845 | 122.471 | 12.9737 |
| 1.59517 | 129.332 | 18.8613 |
| 1.6419 | 125.874 | 21.3177 |
| 1.68863 | 95.9482 | 16.6066 |
| 1.73535 | 36.2607 | 5.2019 |
| 1.78208 | 2.0263 | 0.0264769 |
