Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
W : | 1.9125 GeV |
---|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

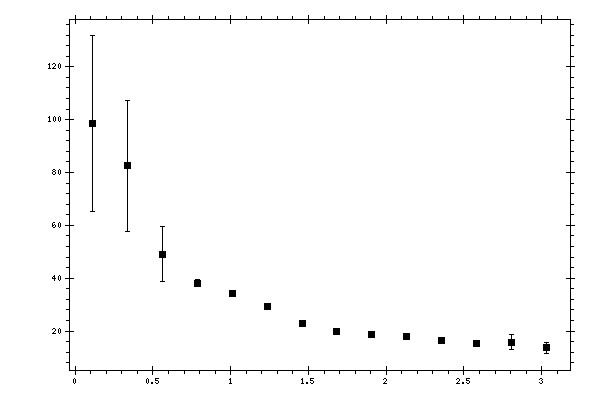

Measured data:
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Data errors,
mcb |
---|---|---|
0.1122 | 98.5171 | 33.1902 |
0.336599 | 82.492 | 24.9342 |
0.560999 | 49.1453 | 10.2483 |
0.785398 | 38.0925 | 1.29218 |
1.0098 | 34.2336 | 0.748484 |
1.2342 | 29.1641 | 0.542439 |
1.4586 | 22.8236 | 0.537522 |
1.683 | 19.9341 | 0.562122 |
1.9074 | 18.518 | 0.329412 |
2.1318 | 17.8353 | 0.300897 |
2.35619 | 16.3308 | 0.298626 |
2.58059 | 15.2418 | 0.817295 |
2.80499 | 15.823 | 2.87066 |
3.02939 | 13.6809 | 2.02755 |
