Parameter (X axis): θ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9125 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb
Parameter (X axis): θ(π+), rad |
Click here to get data in text file, delimited with tabs.

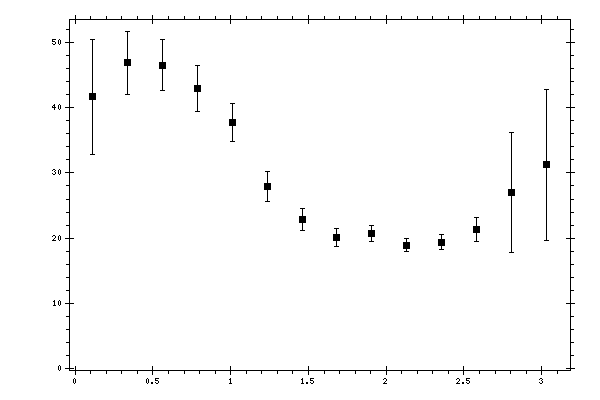

Measured data:
|
θ(π+),
rad |
dσ/d(−cos(θ(π+))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 41.6205 | 8.74673 |
| 0.336599 | 46.8259 | 4.86053 |
| 0.560999 | 46.4305 | 3.90411 |
| 0.785398 | 42.8792 | 3.56391 |
| 1.0098 | 37.6767 | 2.93227 |
| 1.2342 | 27.9577 | 2.2671 |
| 1.4586 | 22.9369 | 1.68058 |
| 1.683 | 20.1449 | 1.37961 |
| 1.9074 | 20.7196 | 1.19349 |
| 2.1318 | 18.9516 | 1.0412 |
| 2.35619 | 19.4136 | 1.13074 |
| 2.58059 | 21.3887 | 1.81597 |
| 2.80499 | 26.9481 | 9.15775 |
| 3.02939 | 31.2164 | 11.601 |
