Parameter (X axis): ψ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcb/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9125 GeV |
|---|
|

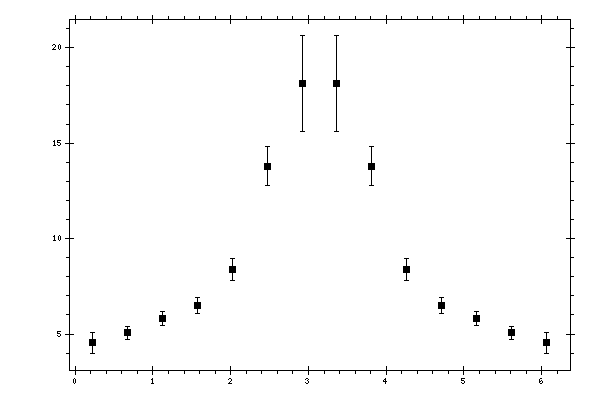

Observable quantity measured (Y axis): dσ/dψ(π+), mcb/rad
Parameter (X axis): ψ(π+), rad |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
rad |
dσ/dψ(π+),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 0.224399 | 4.53474 | 0.533222 |
| 0.673198 | 5.06283 | 0.332358 |
| 1.122 | 5.8237 | 0.350466 |
| 1.5708 | 6.48552 | 0.408207 |
| 2.0196 | 8.39191 | 0.585008 |
| 2.46839 | 13.8 | 1.0077 |
| 2.91719 | 18.1098 | 2.5068 |
| 3.36599 | 18.1096 | 2.5067 |
| 3.81479 | 13.7999 | 1.00765 |
| 4.26359 | 8.39196 | 0.585033 |
| 4.71239 | 6.48553 | 0.408212 |
| 5.16119 | 5.8237 | 0.350466 |
| 5.60999 | 5.06284 | 0.332363 |
| 6.05879 | 4.53464 | 0.533171 |
