Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9375 GeV |
|---|
|

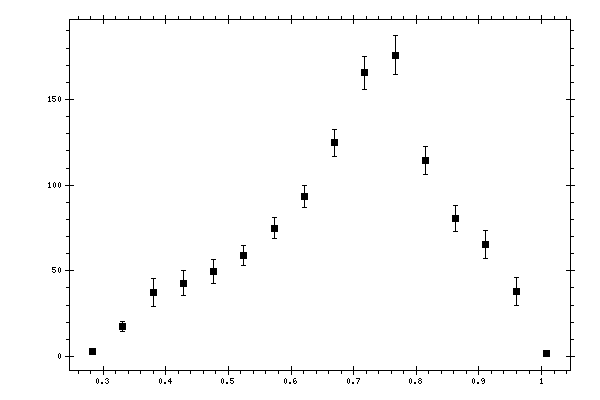

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 0.283264 | 3.05759 | 0.170236 |
| 0.331552 | 17.2688 | 2.93672 |
| 0.37984 | 37.1943 | 8.27026 |
| 0.428128 | 42.7569 | 7.19262 |
| 0.476417 | 49.5049 | 6.85178 |
| 0.524705 | 58.9044 | 5.88345 |
| 0.572993 | 74.8521 | 6.03938 |
| 0.621281 | 93.3288 | 6.3255 |
| 0.669569 | 124.602 | 7.79699 |
| 0.717857 | 165.486 | 9.80938 |
| 0.766145 | 175.77 | 11.3639 |
| 0.814433 | 114.406 | 8.08914 |
| 0.862722 | 80.4762 | 7.55107 |
| 0.91101 | 65.4179 | 8.1599 |
| 0.959298 | 37.983 | 8.08501 |
| 1.00759 | 2.01702 | 0.0771283 |
