Parameter (X axis): θ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb
Parameter (X axis): θ(p), rad |
Click here to get data in text file, delimited with tabs.

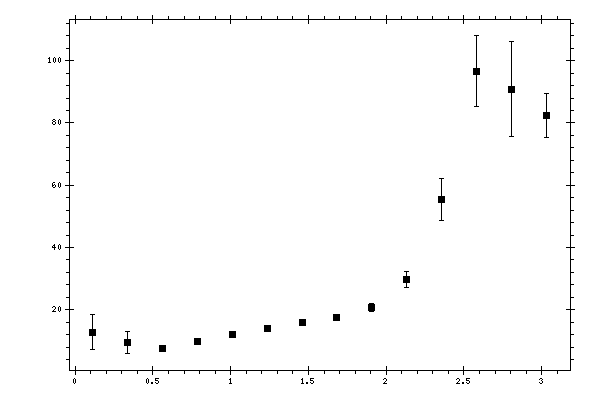

Measured data:
|
θ(p),
rad |
dσ/d(−cos(θ(p))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 12.8042 | 5.67207 |
| 0.336599 | 9.5506 | 3.50681 |
| 0.560999 | 7.65593 | 0.574303 |
| 0.785398 | 9.79445 | 0.101701 |
| 1.0098 | 11.9482 | 0.10509 |
| 1.2342 | 13.8971 | 0.0261717 |
| 1.4586 | 15.8364 | 0.164478 |
| 1.683 | 17.354 | 0.314901 |
| 1.9074 | 20.8448 | 1.28888 |
| 2.1318 | 29.8393 | 2.55375 |
| 2.35619 | 55.3406 | 6.71038 |
| 2.58059 | 96.5944 | 11.3892 |
| 2.80499 | 90.8138 | 15.285 |
| 3.02939 | 82.3661 | 7.06949 |
