Parameter (X axis): ψ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcb/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcb/rad
Parameter (X axis): ψ(π+), rad |
Click here to get data in text file, delimited with tabs.

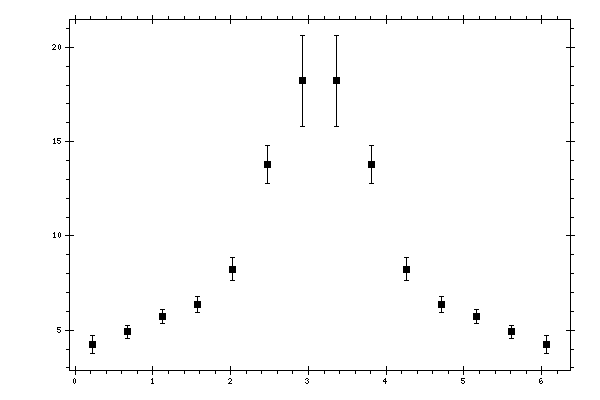

Measured data:
|
ψ(π+),
rad |
dσ/dψ(π+),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 0.224399 | 4.25041 | 0.467374 |
| 0.673198 | 4.9053 | 0.341278 |
| 1.122 | 5.70884 | 0.374599 |
| 1.5708 | 6.35709 | 0.432196 |
| 2.0196 | 8.24235 | 0.601407 |
| 2.46839 | 13.8059 | 1.01836 |
| 2.91719 | 18.2216 | 2.39214 |
| 3.36599 | 18.2214 | 2.39204 |
| 3.81479 | 13.8059 | 1.01836 |
| 4.26359 | 8.24236 | 0.601412 |
| 4.71239 | 6.3571 | 0.432201 |
| 5.16119 | 5.70883 | 0.374593 |
| 5.60999 | 4.90532 | 0.341289 |
| 6.05879 | 4.25041 | 0.467374 |
