Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

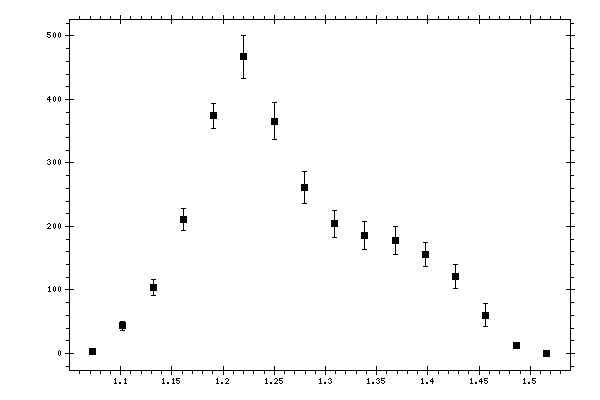

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.0726 | 2.46027 | 0.127313 |
| 1.10214 | 43.3828 | 7.08293 |
| 1.13168 | 103.955 | 13.1457 |
| 1.16121 | 211.107 | 17.4654 |
| 1.19075 | 374.141 | 20.2856 |
| 1.22029 | 466.962 | 33.2272 |
| 1.24983 | 365.972 | 29.5649 |
| 1.27937 | 261.054 | 25.4117 |
| 1.3089 | 204.141 | 21.7102 |
| 1.33844 | 185.648 | 21.8521 |
| 1.36798 | 178.295 | 21.7381 |
| 1.39752 | 155.515 | 18.4905 |
| 1.42706 | 121.265 | 19.1087 |
| 1.45659 | 60.5157 | 17.6426 |
| 1.48613 | 13.1608 | 4.09671 |
| 1.51567 | 0.566015 | 0.02929 |
