Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

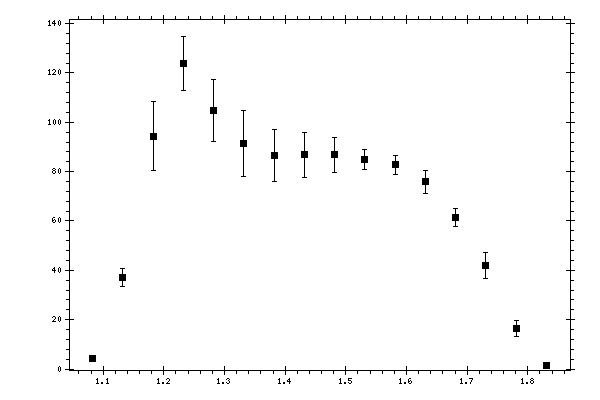

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.08276 | 4.26602 | 0.0817463 |
| 1.13261 | 37.1983 | 3.58406 |
| 1.18246 | 94.3185 | 13.9837 |
| 1.23231 | 123.801 | 10.971 |
| 1.28216 | 104.868 | 12.5318 |
| 1.33201 | 91.4876 | 13.4765 |
| 1.38186 | 86.4948 | 10.6644 |
| 1.43171 | 86.782 | 9.04976 |
| 1.48156 | 86.8157 | 7.04441 |
| 1.53141 | 84.9183 | 4.15802 |
| 1.58126 | 82.6986 | 3.7928 |
| 1.63111 | 75.7932 | 4.56375 |
| 1.68096 | 61.4118 | 3.72706 |
| 1.73081 | 41.8778 | 5.20441 |
| 1.78066 | 16.3947 | 3.29113 |
| 1.83051 | 1.26201 | 0.0731315 |
