Parameter (X axis): θ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

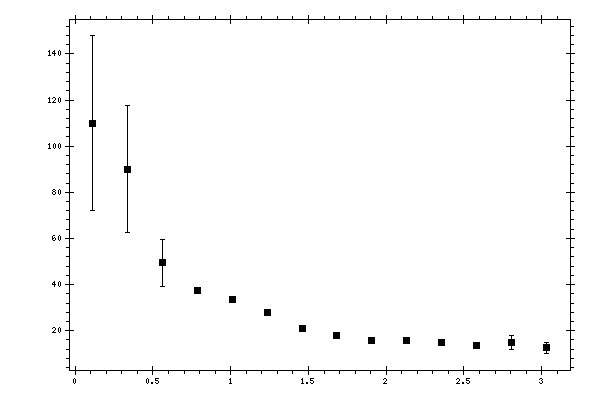

Measured data:
|
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Stat. error,
mcb |
|---|---|---|
| 0.1122 | 109.865 | 37.9342 |
| 0.336599 | 90.0719 | 27.6667 |
| 0.560999 | 49.3868 | 10.134 |
| 0.785398 | 37.3835 | 1.02309 |
| 1.0098 | 33.5147 | 0.625481 |
| 1.2342 | 27.9594 | 0.369894 |
| 1.4586 | 21.04 | 0.521512 |
| 1.683 | 17.9385 | 0.351043 |
| 1.9074 | 15.8466 | 0.283079 |
| 2.1318 | 15.615 | 0.217125 |
| 2.35619 | 14.7062 | 0.227853 |
| 2.58059 | 13.782 | 0.815214 |
| 2.80499 | 14.9462 | 3.11028 |
| 3.02939 | 12.5603 | 2.26443 |
