Parameter (X axis): θ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb
Parameter (X axis): θ(π+), rad |
Click here to get data in text file, delimited with tabs.

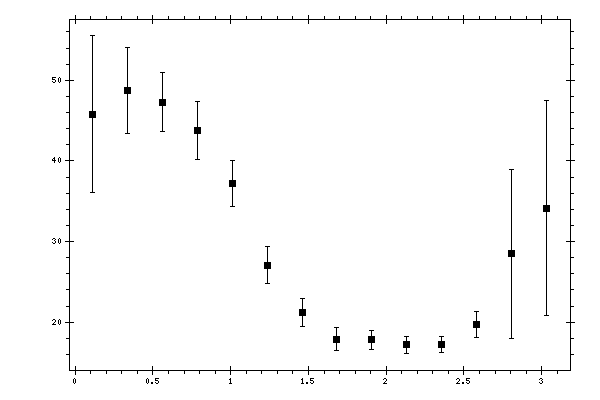

Measured data:
|
θ(π+),
rad |
dσ/d(−cos(θ(π+))),
mcb |
Stat. error,
mcb |
|---|---|---|
| 0.1122 | 45.8063 | 9.71238 |
| 0.336599 | 48.762 | 5.32756 |
| 0.560999 | 47.2898 | 3.64643 |
| 0.785398 | 43.7287 | 3.60346 |
| 1.0098 | 37.2181 | 2.86172 |
| 1.2342 | 27.0722 | 2.32575 |
| 1.4586 | 21.2061 | 1.73174 |
| 1.683 | 17.8796 | 1.40317 |
| 1.9074 | 17.8246 | 1.15263 |
| 2.1318 | 17.2052 | 1.04543 |
| 2.35619 | 17.2533 | 1.0113 |
| 2.58059 | 19.6747 | 1.61408 |
| 2.80499 | 28.4941 | 10.4803 |
| 3.02939 | 34.1375 | 13.3574 |
