Parameter (X axis): ψ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcb/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcb/rad
Parameter (X axis): ψ(π+), rad |
Click here to get data in text file, delimited with tabs.

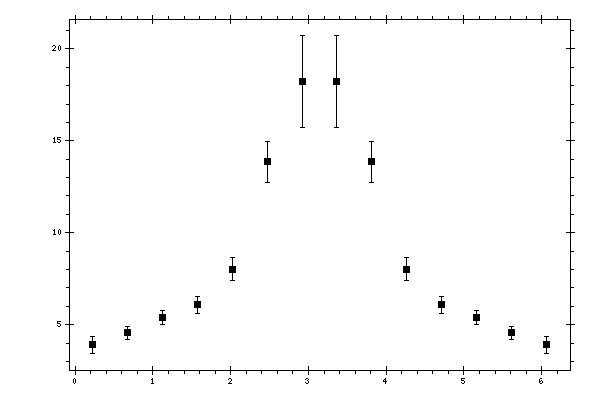

Measured data:
|
ψ(π+),
rad |
dσ/dψ(π+),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 0.224399 | 3.90659 | 0.456551 |
| 0.673198 | 4.55667 | 0.344462 |
| 1.122 | 5.3774 | 0.393463 |
| 1.5708 | 6.09079 | 0.462681 |
| 2.0196 | 8.0036 | 0.625475 |
| 2.46839 | 13.8568 | 1.09887 |
| 2.91719 | 18.2108 | 2.4994 |
| 3.36599 | 18.2104 | 2.49919 |
| 3.81479 | 13.8567 | 1.09882 |
| 4.26359 | 8.00361 | 0.62548 |
| 4.71239 | 6.0908 | 0.462687 |
| 5.16119 | 5.3774 | 0.393463 |
| 5.60999 | 4.55667 | 0.344462 |
| 6.05879 | 3.90659 | 0.456551 |
