Parameter (X axis): ψ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), rad |
Click here to get data in text file, delimited with tabs.

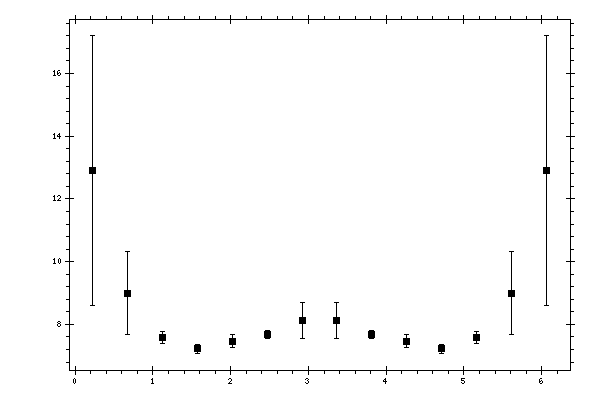

Measured data:
|
ψ(p),
rad |
dσ/dψ(p),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 0.224399 | 12.9067 | 4.29253 |
| 0.673198 | 8.99514 | 1.31404 |
| 1.122 | 7.59294 | 0.188898 |
| 1.5708 | 7.22228 | 0.13844 |
| 2.0196 | 7.4699 | 0.220464 |
| 2.46839 | 7.68431 | 0.134428 |
| 2.91719 | 8.131 | 0.578601 |
| 3.36599 | 8.13107 | 0.57864 |
| 3.81479 | 7.68433 | 0.134418 |
| 4.26359 | 7.46991 | 0.220459 |
| 4.71239 | 7.22224 | 0.138459 |
| 5.16119 | 7.59288 | 0.188869 |
| 5.60999 | 8.99519 | 1.31406 |
| 6.05879 | 12.9068 | 4.29258 |
