Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

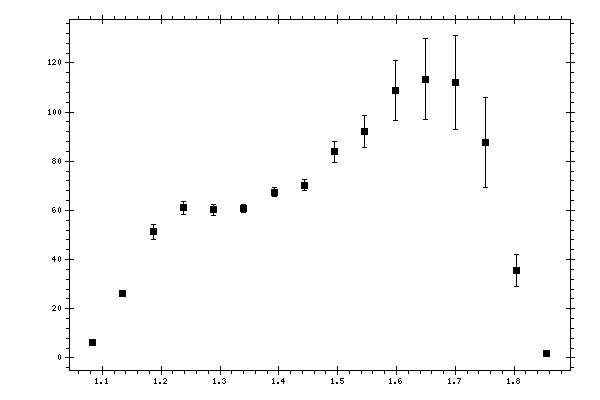

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.08354 | 6.10969 | 0.512079 |
| 1.13495 | 26.3386 | 1.14526 |
| 1.18636 | 51.3458 | 3.05566 |
| 1.23778 | 61.0389 | 2.56125 |
| 1.28919 | 60.165 | 2.32317 |
| 1.3406 | 60.7112 | 1.67445 |
| 1.39202 | 67.3507 | 1.78622 |
| 1.44343 | 70.1745 | 2.24639 |
| 1.49484 | 83.8621 | 4.25604 |
| 1.54625 | 92.2333 | 6.50724 |
| 1.59767 | 108.763 | 12.024 |
| 1.64908 | 113.323 | 16.5283 |
| 1.70049 | 111.884 | 19.1269 |
| 1.75191 | 87.5046 | 18.2971 |
| 1.80332 | 35.6531 | 6.53015 |
| 1.85473 | 1.94603 | 0.0199137 |
