Parameter (X axis): θ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

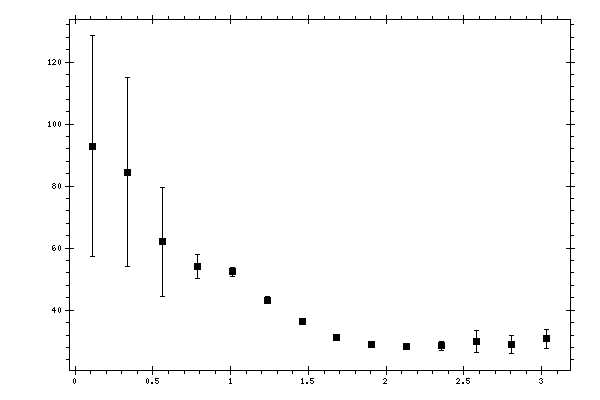

Measured data:
|
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 92.8078 | 35.6239 |
| 0.336599 | 84.4902 | 30.3682 |
| 0.560999 | 62.0752 | 17.5325 |
| 0.785398 | 54.0928 | 3.93215 |
| 1.0098 | 52.3174 | 1.42491 |
| 1.2342 | 43.2719 | 1.01867 |
| 1.4586 | 36.4034 | 0.95339 |
| 1.683 | 31.3267 | 0.798816 |
| 1.9074 | 29.0479 | 0.880644 |
| 2.1318 | 28.3264 | 0.771224 |
| 2.35619 | 28.5162 | 1.50817 |
| 2.58059 | 29.9281 | 3.47184 |
| 2.80499 | 28.9244 | 2.76653 |
| 3.02939 | 30.7471 | 3.17466 |
