Parameter (X axis): θ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

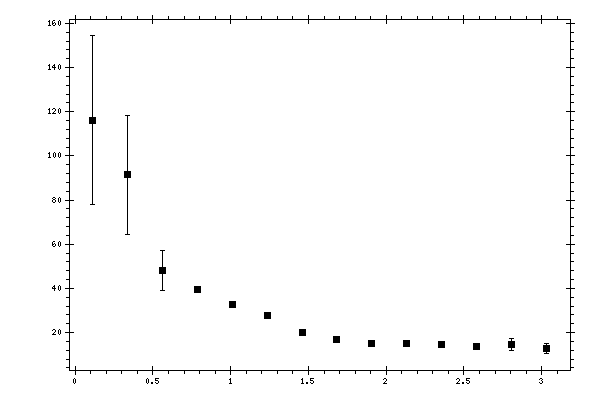

Measured data:
|
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Stat. error,
mcb |
|---|---|---|
| 0.1122 | 116.128 | 38.2545 |
| 0.336599 | 91.4249 | 27.0087 |
| 0.560999 | 48.1368 | 9.07796 |
| 0.785398 | 39.5808 | 1.10064 |
| 1.0098 | 32.8985 | 0.727582 |
| 1.2342 | 27.6029 | 0.410021 |
| 1.4586 | 20.1606 | 0.469818 |
| 1.683 | 16.8964 | 0.2721 |
| 1.9074 | 15.0304 | 0.262362 |
| 2.1318 | 15.1264 | 0.211417 |
| 2.35619 | 14.7326 | 0.239145 |
| 2.58059 | 13.6092 | 0.609663 |
| 2.80499 | 14.527 | 2.81252 |
| 3.02939 | 12.7914 | 2.10616 |
