Parameter (X axis): θ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.9875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb
Parameter (X axis): θ(p), rad |
Click here to get data in text file, delimited with tabs.

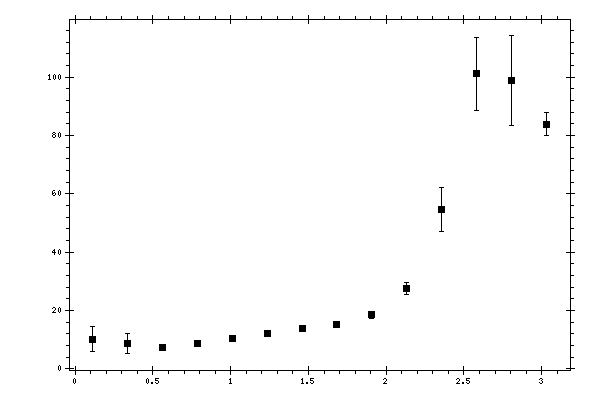

Measured data:
|
θ(p),
rad |
dσ/d(−cos(θ(p))),
mcb |
Stat. error,
mcb |
|---|---|---|
| 0.1122 | 10.1139 | 4.25699 |
| 0.336599 | 8.76807 | 3.36255 |
| 0.560999 | 7.22466 | 0.586299 |
| 0.785398 | 8.76262 | 0.177341 |
| 1.0098 | 10.4764 | 0.0672398 |
| 1.2342 | 12.0107 | 0.0312448 |
| 1.4586 | 13.8958 | 0.0897045 |
| 1.683 | 15.2681 | 0.239523 |
| 1.9074 | 18.4849 | 1.04407 |
| 2.1318 | 27.5485 | 2.17877 |
| 2.35619 | 54.5986 | 7.51483 |
| 2.58059 | 101.093 | 12.5922 |
| 2.80499 | 98.7294 | 15.3945 |
| 3.02939 | 83.808 | 3.96099 |
