Parameter (X axis): θ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb
Parameter (X axis): θ(π+), rad |
Click here to get data in text file, delimited with tabs.

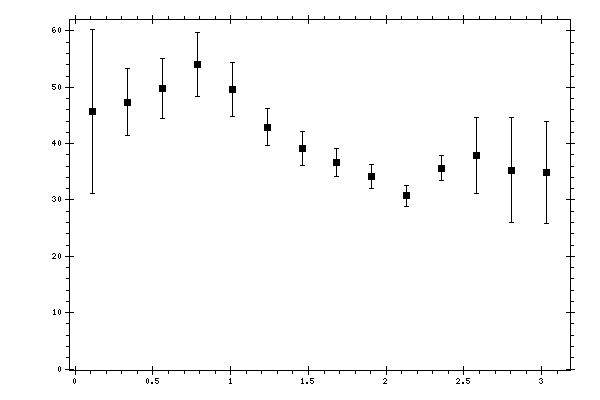

Measured data:
|
θ(π+),
rad |
dσ/d(−cos(θ(π+))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 45.7238 | 14.5082 |
| 0.336599 | 47.3835 | 5.90409 |
| 0.560999 | 49.7674 | 5.26516 |
| 0.785398 | 54.0294 | 5.62099 |
| 1.0098 | 49.6071 | 4.72594 |
| 1.2342 | 42.9247 | 3.31529 |
| 1.4586 | 39.1546 | 2.96785 |
| 1.683 | 36.6805 | 2.52116 |
| 1.9074 | 34.1672 | 2.13144 |
| 2.1318 | 30.7213 | 1.78851 |
| 2.35619 | 35.6425 | 2.20212 |
| 2.58059 | 37.844 | 6.75325 |
| 2.80499 | 35.3074 | 9.31992 |
| 3.02939 | 34.9457 | 9.04798 |
