Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

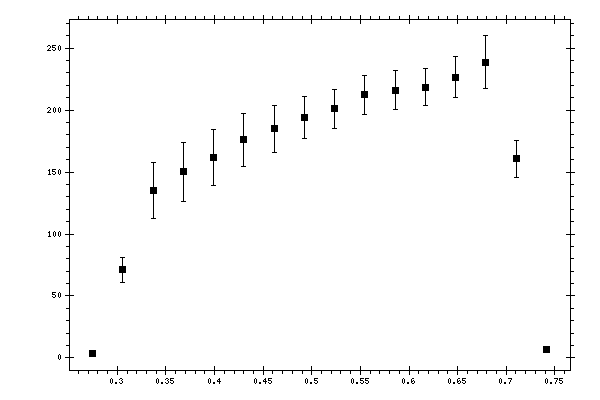

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.27467 | 3.95372 | 0.109015 |
| 0.305771 | 71.001 | 9.79206 |
| 0.336872 | 135.442 | 22.5853 |
| 0.367972 | 150.065 | 23.8601 |
| 0.399073 | 161.858 | 22.6612 |
| 0.430173 | 176.031 | 21.4431 |
| 0.461274 | 184.925 | 18.8899 |
| 0.492375 | 193.911 | 16.6958 |
| 0.523475 | 201.048 | 15.5456 |
| 0.554576 | 212.561 | 15.7825 |
| 0.585677 | 216.212 | 15.7243 |
| 0.616777 | 218.654 | 15.2191 |
| 0.647878 | 226.438 | 16.5624 |
| 0.678978 | 238.848 | 21.1076 |
| 0.710079 | 160.779 | 15.0369 |
| 0.74118 | 6.66076 | 0.183655 |
