Parameter (X axis): θ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

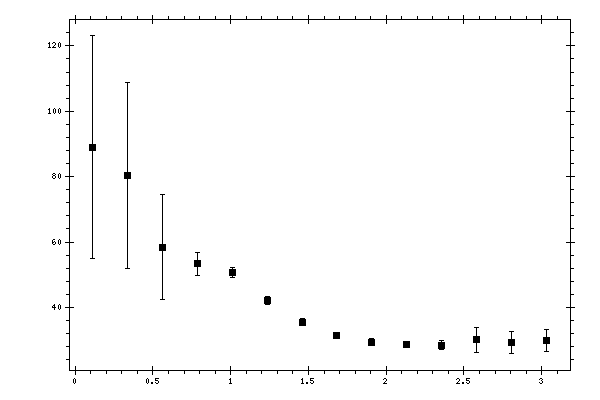

Measured data:
|
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 88.9652 | 34.1046 |
| 0.336599 | 80.2905 | 28.5179 |
| 0.560999 | 58.4486 | 15.9677 |
| 0.785398 | 53.3054 | 3.63836 |
| 1.0098 | 50.5582 | 1.51941 |
| 1.2342 | 42.1312 | 1.12932 |
| 1.4586 | 35.4189 | 1.05304 |
| 1.683 | 31.3469 | 0.990553 |
| 1.9074 | 29.3507 | 1.02376 |
| 2.1318 | 28.7475 | 0.924616 |
| 2.35619 | 28.3838 | 1.38902 |
| 2.58059 | 30.0604 | 3.73994 |
| 2.80499 | 29.3556 | 3.33293 |
| 3.02939 | 29.7439 | 3.37105 |
