Measurement E169M25

You are not logged in.

Experiment: g11, 2005

Spokespersons: E. Golovach

No publications available for this experiment

Quantity measured: dσ/d(−cos(θ(p))), mcb
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+πp, polarization: none

W : 1.6625 GeV

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb

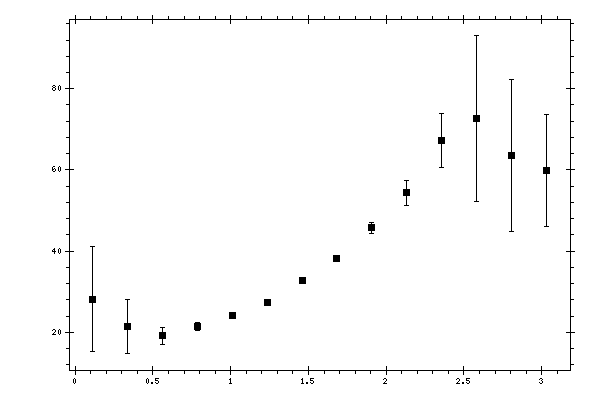

Plot measurement data

Parameter (X axis): θ(p), rad

Click here to get data in text file, delimited with tabs.

Measured data:

θ(p),
rad
dσ/d(−cos(θ(p))),
mcb
Data errors,
mcb
0.1122 28.1815 12.9985
0.336599 21.4571 6.58862
0.560999 19.096 2.04684
0.785398 21.483 0.922339
1.0098 24.026 0.51339
1.2342 27.3926 0.492984
1.4586 32.6535 0.700469
1.683 38.1956 0.655153
1.9074 45.7665 1.38661
2.1318 54.3552 3.09239
2.35619 67.2565 6.69888
2.58059 72.6555 20.3717
2.80499 63.5671 18.8257
3.02939 59.8383 13.8268
