Parameter (X axis): ψ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcb/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcb/rad
Parameter (X axis): ψ(π+), rad |
Click here to get data in text file, delimited with tabs.

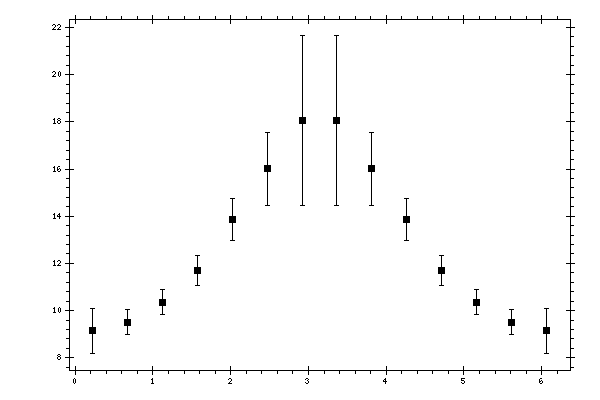

Measured data:
|
ψ(π+),
rad |
dσ/dψ(π+),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 0.224399 | 9.14926 | 0.951916 |
| 0.673198 | 9.50471 | 0.536647 |
| 1.122 | 10.3627 | 0.535846 |
| 1.5708 | 11.7001 | 0.641587 |
| 2.0196 | 13.8629 | 0.89606 |
| 2.46839 | 16.0045 | 1.55572 |
| 2.91719 | 18.0606 | 3.58594 |
| 3.36599 | 18.0606 | 3.58594 |
| 3.81479 | 16.0045 | 1.55572 |
| 4.26359 | 13.8629 | 0.89606 |
| 4.71239 | 11.7001 | 0.641587 |
| 5.16119 | 10.3627 | 0.535846 |
| 5.60999 | 9.50474 | 0.536662 |
| 6.05879 | 9.14924 | 0.951906 |
