Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

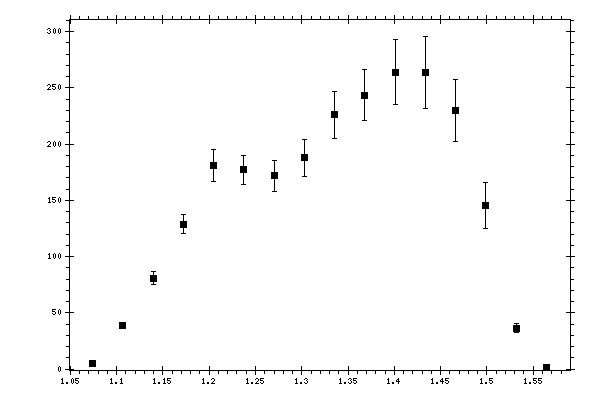

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.07416 | 4.54368 | 0.103741 |
| 1.10682 | 38.8619 | 2.75406 |
| 1.13949 | 80.8282 | 5.93747 |
| 1.17215 | 128.812 | 8.48327 |
| 1.20481 | 181.003 | 14.4934 |
| 1.23748 | 177.076 | 13.0283 |
| 1.27014 | 171.703 | 14.0186 |
| 1.3028 | 187.804 | 16.4015 |
| 1.33547 | 226.15 | 20.9855 |
| 1.36813 | 243.636 | 22.962 |
| 1.40079 | 264.016 | 29.0944 |
| 1.43346 | 263.629 | 31.9987 |
| 1.46612 | 229.914 | 27.8668 |
| 1.49878 | 145.491 | 20.4577 |
| 1.53145 | 36.4436 | 4.385 |
| 1.56411 | 1.01758 | 0.0232334 |
