Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

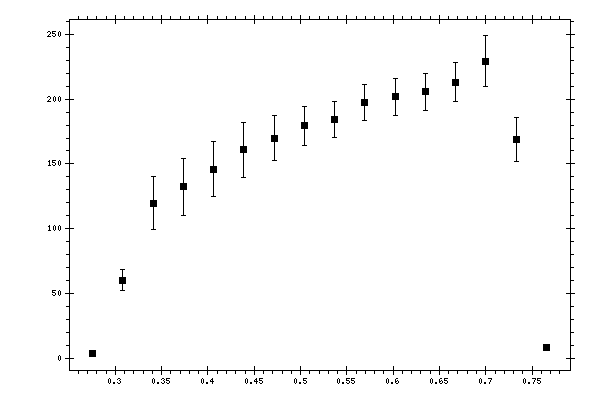

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 0.275452 | 3.9956 | 0.0964031 |
| 0.308115 | 60.326 | 7.99279 |
| 0.340778 | 119.77 | 20.564 |
| 0.373441 | 132.183 | 21.6646 |
| 0.406104 | 146.074 | 21.2103 |
| 0.438767 | 160.788 | 21.1015 |
| 0.47143 | 169.962 | 17.5788 |
| 0.504093 | 179.468 | 15.1086 |
| 0.536757 | 184.29 | 13.5848 |
| 0.56942 | 197.455 | 14.0206 |
| 0.602083 | 201.786 | 14.3581 |
| 0.634746 | 205.552 | 13.9363 |
| 0.667409 | 213.165 | 14.8784 |
| 0.700072 | 229.378 | 19.5024 |
| 0.732735 | 168.728 | 17.2029 |
| 0.765398 | 8.01019 | 0.193264 |
