Parameter (X axis): ψ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcb/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcb/rad
Parameter (X axis): ψ(π+), rad |
Click here to get data in text file, delimited with tabs.

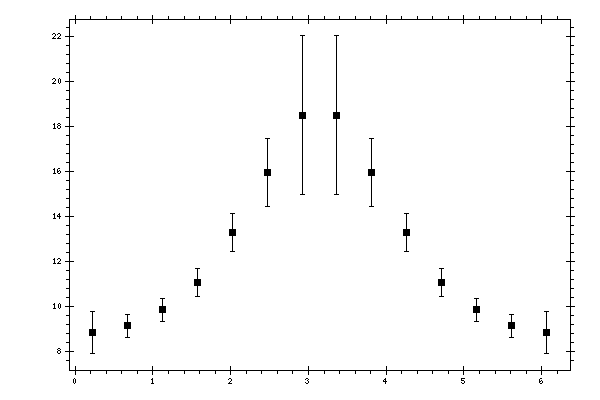

Measured data:
|
ψ(π+),
rad |
dσ/dψ(π+),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 0.224399 | 8.84116 | 0.931581 |
| 0.673198 | 9.13011 | 0.513045 |
| 1.122 | 9.84 | 0.507109 |
| 1.5708 | 11.0771 | 0.622513 |
| 2.0196 | 13.2908 | 0.843333 |
| 2.46839 | 15.9602 | 1.51971 |
| 2.91719 | 18.5014 | 3.54122 |
| 3.36599 | 18.5015 | 3.54127 |
| 3.81479 | 15.9601 | 1.51966 |
| 4.26359 | 13.2908 | 0.843333 |
| 4.71239 | 11.0771 | 0.622513 |
| 5.16119 | 9.84 | 0.507109 |
| 5.60999 | 9.13013 | 0.513055 |
| 6.05879 | 8.8412 | 0.931601 |
