Parameter (X axis): ψ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), rad |
Click here to get data in text file, delimited with tabs.

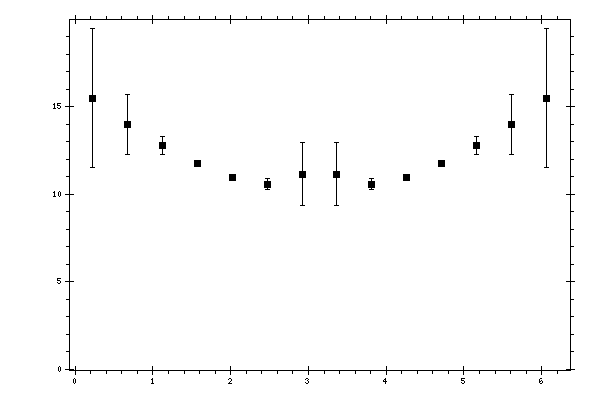

Measured data:
|
ψ(p),
rad |
dσ/dψ(p),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 0.224399 | 15.4852 | 3.96705 |
| 0.673198 | 13.9812 | 1.74336 |
| 1.122 | 12.7871 | 0.496446 |
| 1.5708 | 11.7359 | 0.114934 |
| 2.0196 | 10.9468 | 0.039628 |
| 2.46839 | 10.5557 | 0.318368 |
| 2.91719 | 11.1489 | 1.79878 |
| 3.36599 | 11.1489 | 1.79878 |
| 3.81479 | 10.5556 | 0.318319 |
| 4.26359 | 10.9469 | 0.0396771 |
| 4.71239 | 11.7359 | 0.114934 |
| 5.16119 | 12.7871 | 0.496446 |
| 5.60999 | 13.9811 | 1.74331 |
| 6.05879 | 15.4851 | 3.967 |
