Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7125 GeV |
|---|
|

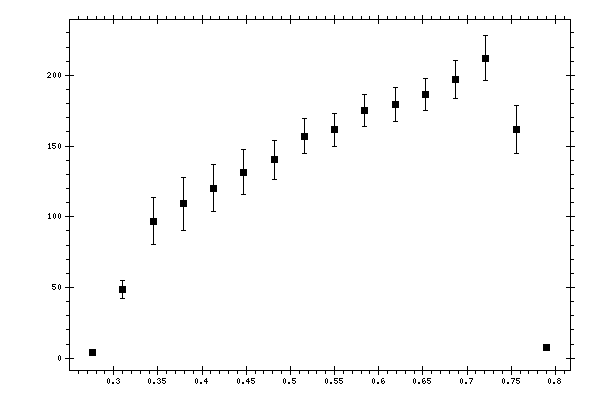

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 0.276233 | 3.72911 | 0.0979774 |
| 0.310458 | 48.4123 | 6.36343 |
| 0.344684 | 96.9919 | 16.8036 |
| 0.37891 | 109.18 | 18.5903 |
| 0.413135 | 120.277 | 16.7892 |
| 0.447361 | 131.643 | 16.1859 |
| 0.481587 | 140.173 | 14.0069 |
| 0.515812 | 156.926 | 12.425 |
| 0.550038 | 161.519 | 11.7414 |
| 0.584263 | 175.093 | 11.5723 |
| 0.618489 | 179.322 | 12.1523 |
| 0.652715 | 186.437 | 11.1859 |
| 0.68694 | 196.985 | 13.3657 |
| 0.721166 | 212.229 | 15.7 |
| 0.755392 | 161.702 | 16.9592 |
| 0.789617 | 7.7697 | 0.204139 |
