Parameter (X axis): ψ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcb/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7125 GeV |
|---|
|

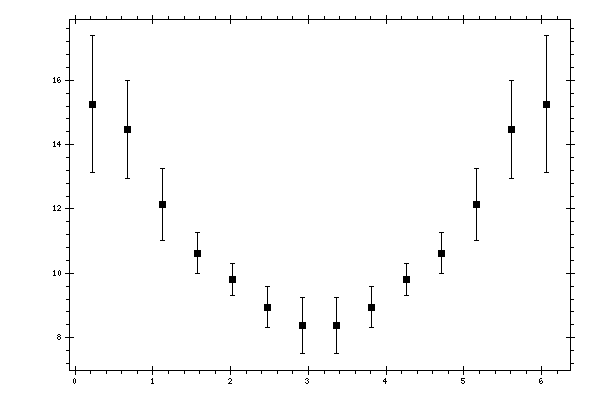

Observable quantity measured (Y axis): dσ/dψ(π−), mcb/rad
Parameter (X axis): ψ(π−), rad |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
rad |
dσ/dψ(π−),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 0.224399 | 15.2612 | 2.12432 |
| 0.673198 | 14.4698 | 1.53333 |
| 1.122 | 12.1457 | 1.11054 |
| 1.5708 | 10.6229 | 0.632011 |
| 2.0196 | 9.80406 | 0.490326 |
| 2.46839 | 8.94209 | 0.643529 |
| 2.91719 | 8.38495 | 0.868671 |
| 3.36599 | 8.38495 | 0.868671 |
| 3.81479 | 8.94209 | 0.643529 |
| 4.26359 | 9.80406 | 0.490326 |
| 4.71239 | 10.6229 | 0.632011 |
| 5.16119 | 12.1457 | 1.11054 |
| 5.60999 | 14.4698 | 1.53333 |
| 6.05879 | 15.2612 | 2.12432 |
