Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

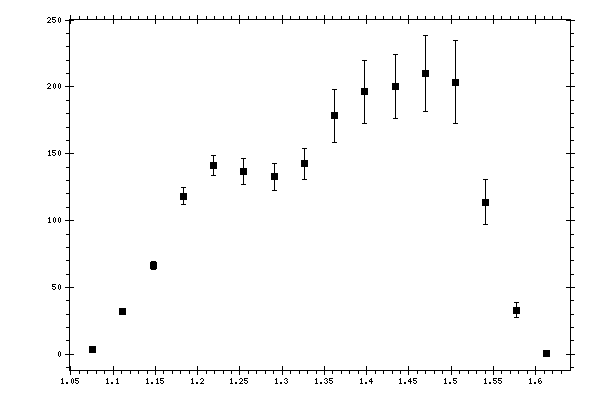

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.07572 | 3.9776 | 0.0553433 |
| 1.11151 | 32.0304 | 1.62475 |
| 1.1473 | 66.2107 | 3.06509 |
| 1.18309 | 118.307 | 6.56305 |
| 1.21888 | 141.289 | 7.44125 |
| 1.25466 | 136.701 | 9.94861 |
| 1.29045 | 132.695 | 9.95988 |
| 1.32624 | 142.479 | 11.4818 |
| 1.36203 | 178.389 | 20.0227 |
| 1.39782 | 196.543 | 23.6103 |
| 1.43361 | 200.434 | 24.0273 |
| 1.46939 | 209.834 | 28.4056 |
| 1.50518 | 203.63 | 30.8469 |
| 1.54097 | 113.661 | 16.8808 |
| 1.57676 | 33.0773 | 5.6719 |
| 1.61255 | 0.914696 | 0.0127269 |
