Parameter (X axis): θ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.6125 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

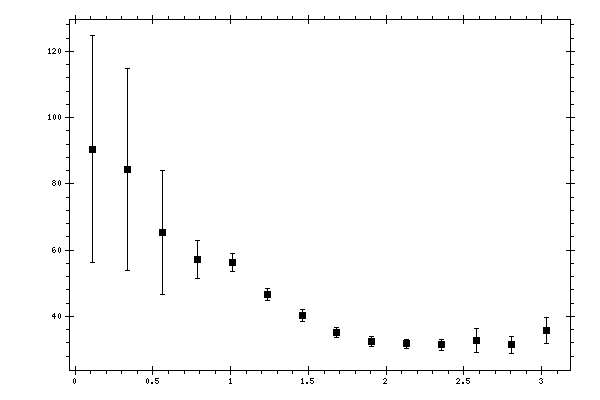

Measured data:
|
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Stat. error,
mcb |
|---|---|---|
| 0.1122 | 90.4925 | 34.1764 |
| 0.336599 | 84.3574 | 30.3917 |
| 0.560999 | 65.2864 | 18.6863 |
| 0.785398 | 57.1283 | 5.70683 |
| 1.0098 | 56.2365 | 2.64304 |
| 1.2342 | 46.6878 | 1.83764 |
| 1.4586 | 40.3295 | 1.85134 |
| 1.683 | 35.1979 | 1.44609 |
| 1.9074 | 32.3456 | 1.49167 |
| 2.1318 | 31.7858 | 1.34195 |
| 2.35619 | 31.4228 | 1.66466 |
| 2.58059 | 32.7368 | 3.66329 |
| 2.80499 | 31.4083 | 2.49356 |
| 3.02939 | 35.7259 | 3.92446 |
