Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb
Parameter (X axis): θ(p), rad |
Click here to get data in text file, delimited with tabs.

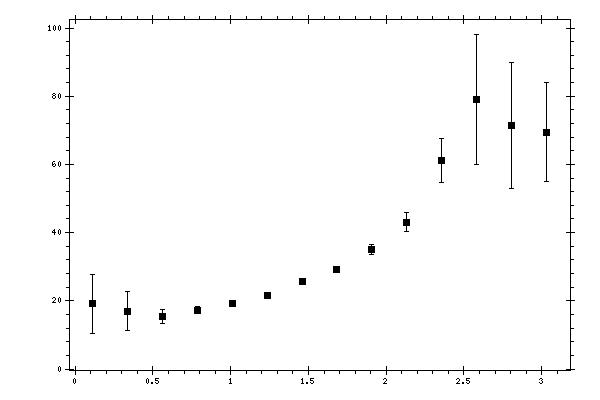

Measured data:
|
θ(p),
rad |
dσ/d(−cos(θ(p))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 19.1743 | 8.67838 |
| 0.336599 | 16.956 | 5.75523 |
| 0.560999 | 15.3407 | 2.05327 |
| 0.785398 | 17.2779 | 1.03443 |
| 1.0098 | 19.0855 | 0.250666 |
| 1.2342 | 21.5167 | 0.123225 |
| 1.4586 | 25.5263 | 0.253558 |
| 1.683 | 29.2635 | 0.374021 |
| 1.9074 | 35.0787 | 1.47946 |
| 2.1318 | 43.1018 | 2.82256 |
| 2.35619 | 61.103 | 6.54724 |
| 2.58059 | 78.9817 | 19.0085 |
| 2.80499 | 71.543 | 18.4545 |
| 3.02939 | 69.4809 | 14.5581 |
