Parameter (X axis): ψ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), rad |
Click here to get data in text file, delimited with tabs.

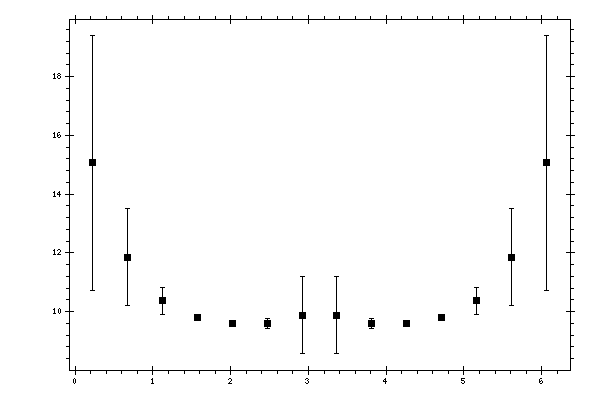

Measured data:
|
ψ(p),
rad |
dσ/dψ(p),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 0.224399 | 15.064 | 4.3261 |
| 0.673198 | 11.8506 | 1.65517 |
| 1.122 | 10.37 | 0.450541 |
| 1.5708 | 9.79207 | 0.0831285 |
| 2.0196 | 9.59296 | 0.0300832 |
| 2.46839 | 9.60332 | 0.176058 |
| 2.91719 | 9.88783 | 1.2982 |
| 3.36599 | 9.88783 | 1.2982 |
| 3.81479 | 9.60322 | 0.176009 |
| 4.26359 | 9.59299 | 0.0300684 |
| 4.71239 | 9.79208 | 0.0831332 |
| 5.16119 | 10.3701 | 0.450591 |
| 5.60999 | 11.8505 | 1.65512 |
| 6.05879 | 15.0635 | 4.32585 |
