Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

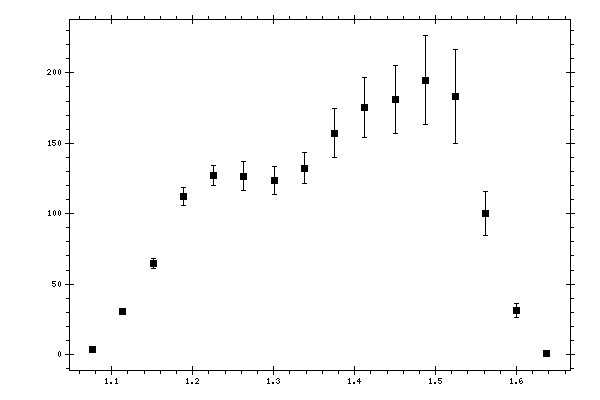

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.07651 | 3.87243 | 0.0619347 |
| 1.11386 | 30.4987 | 1.97743 |
| 1.15121 | 64.7349 | 3.40503 |
| 1.18856 | 112.077 | 6.58274 |
| 1.22591 | 126.931 | 7.24715 |
| 1.26326 | 126.497 | 10.2534 |
| 1.30061 | 123.497 | 9.83998 |
| 1.33796 | 132.343 | 10.8308 |
| 1.37531 | 157.151 | 17.2227 |
| 1.41266 | 175.695 | 21.354 |
| 1.45001 | 181.172 | 24.2468 |
| 1.48736 | 194.774 | 31.4823 |
| 1.52471 | 183.013 | 33.3499 |
| 1.56206 | 100.079 | 15.8027 |
| 1.59941 | 31.3055 | 4.95085 |
| 1.63676 | 1.05617 | 0.0168923 |
