Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment

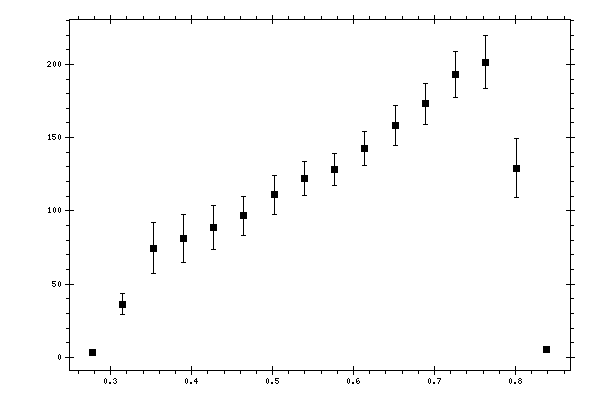

Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.277795 | 3.04115 | 0.127752 |
| 0.315146 | 36.3689 | 7.15987 |
| 0.352497 | 74.5683 | 17.2428 |
| 0.389847 | 81.2664 | 16.2419 |
| 0.427198 | 88.5361 | 15.1614 |
| 0.464548 | 96.5399 | 13.5791 |
| 0.501899 | 110.905 | 13.4178 |
| 0.53925 | 121.953 | 11.479 |
| 0.5766 | 128.217 | 10.9237 |
| 0.613951 | 142.654 | 11.7136 |
| 0.651302 | 158.501 | 13.6586 |
| 0.688652 | 173.028 | 13.9604 |
| 0.726003 | 192.874 | 15.7942 |
| 0.763353 | 201.586 | 17.8669 |
| 0.800704 | 129.105 | 20.0641 |
| 0.838055 | 5.55125 | 0.233196 |
