Parameter (X axis): θ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

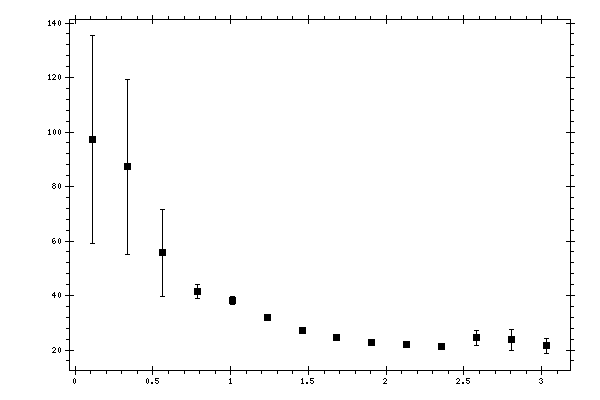

Measured data:
|
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Stat. error,
mcb |
|---|---|---|
| 0.1122 | 97.1432 | 38.1422 |
| 0.336599 | 87.2304 | 32.0501 |
| 0.560999 | 55.6203 | 15.8985 |
| 0.785398 | 41.5384 | 2.4841 |
| 1.0098 | 38.0832 | 1.41018 |
| 1.2342 | 31.9848 | 0.840532 |
| 1.4586 | 27.0543 | 0.770733 |
| 1.683 | 24.6078 | 0.798991 |
| 1.9074 | 22.762 | 0.560435 |
| 2.1318 | 22.0339 | 0.578608 |
| 2.35619 | 21.446 | 0.663392 |
| 2.58059 | 24.4538 | 2.74745 |
| 2.80499 | 23.7596 | 3.79593 |
| 3.02939 | 21.6323 | 2.75212 |
