Parameter (X axis): θ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb
Parameter (X axis): θ(p), rad |
Click here to get data in text file, delimited with tabs.

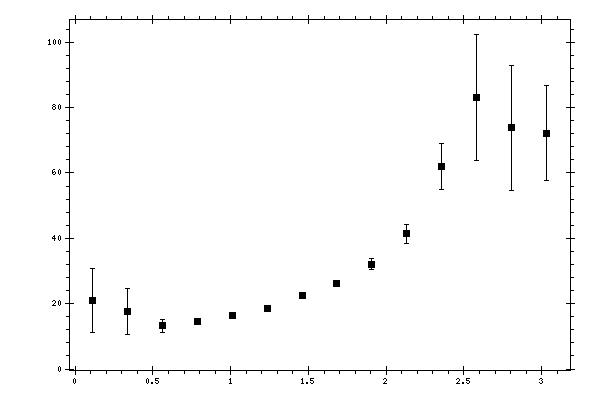

Measured data:
|
θ(p),
rad |
dσ/d(−cos(θ(p))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 20.9528 | 9.85403 |
| 0.336599 | 17.6147 | 7.0699 |
| 0.560999 | 13.1697 | 1.90907 |
| 0.785398 | 14.5961 | 0.87742 |
| 1.0098 | 16.402 | 0.312003 |
| 1.2342 | 18.6335 | 0.121379 |
| 1.4586 | 22.4602 | 0.261178 |
| 1.683 | 26.0563 | 0.402884 |
| 1.9074 | 32.1336 | 1.57079 |
| 2.1318 | 41.3991 | 2.85733 |
| 2.35619 | 61.8971 | 7.06943 |
| 2.58059 | 83.0787 | 19.1668 |
| 2.80499 | 73.851 | 19.0844 |
| 3.02939 | 72.2281 | 14.4281 |
