Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

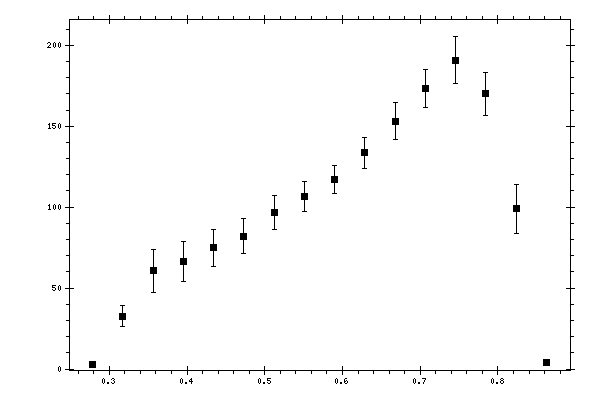

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.278577 | 3.06416 | 0.112148 |
| 0.31749 | 32.5944 | 6.63961 |
| 0.356403 | 60.5604 | 13.3492 |
| 0.395316 | 66.5682 | 12.2983 |
| 0.434229 | 74.7802 | 11.5238 |
| 0.473142 | 82.165 | 10.8393 |
| 0.512055 | 96.6985 | 10.4525 |
| 0.550968 | 106.473 | 9.22026 |
| 0.589882 | 116.97 | 8.81102 |
| 0.628795 | 133.501 | 9.77303 |
| 0.667708 | 153.148 | 11.2377 |
| 0.706621 | 173.269 | 11.928 |
| 0.745534 | 190.851 | 14.6521 |
| 0.784447 | 169.985 | 13.3901 |
| 0.82336 | 98.9954 | 15.1543 |
| 0.862273 | 4.302 | 0.157452 |
