Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

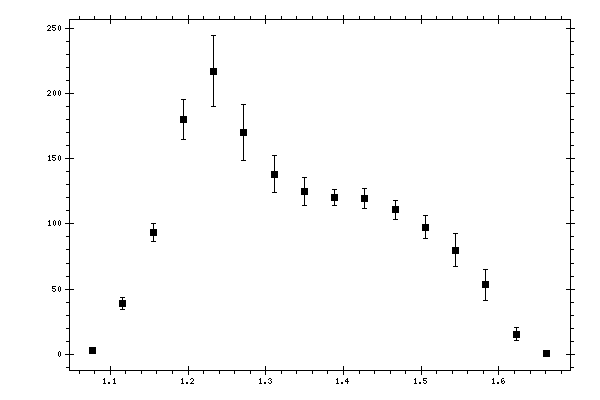

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.07729 | 3.06366 | 0.191256 |
| 1.1162 | 39.1042 | 4.7537 |
| 1.15511 | 93.2569 | 6.95581 |
| 1.19403 | 180.226 | 15.0827 |
| 1.23294 | 217.299 | 27.0544 |
| 1.27185 | 169.883 | 21.5379 |
| 1.31077 | 138.153 | 14.3314 |
| 1.34968 | 125.095 | 10.5635 |
| 1.38859 | 120.393 | 6.39425 |
| 1.4275 | 119.684 | 7.7918 |
| 1.46642 | 110.791 | 7.26818 |
| 1.50533 | 97.5585 | 8.81168 |
| 1.54424 | 79.8828 | 12.6582 |
| 1.58316 | 53.2241 | 11.8678 |
| 1.62207 | 15.4181 | 4.71434 |
| 1.66098 | 0.892577 | 0.0557213 |
