Parameter (X axis): ψ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.7875 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), rad |
Click here to get data in text file, delimited with tabs.

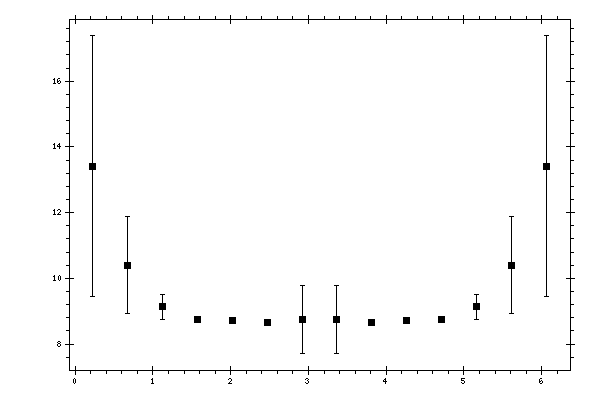

Measured data:
|
ψ(p),
rad |
dσ/dψ(p),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 0.224399 | 13.4098 | 3.97245 |
| 0.673198 | 10.4031 | 1.48009 |
| 1.122 | 9.13006 | 0.374442 |
| 1.5708 | 8.75207 | 0.0555229 |
| 2.0196 | 8.71324 | 0.0624752 |
| 2.46839 | 8.64425 | 0.0743113 |
| 2.91719 | 8.74741 | 1.02203 |
| 3.36599 | 8.7474 | 1.02203 |
| 3.81479 | 8.64419 | 0.0742764 |
| 4.26359 | 8.71323 | 0.06248 |
| 4.71239 | 8.75204 | 0.0555081 |
| 5.16119 | 9.13013 | 0.374476 |
| 5.60999 | 10.4032 | 1.48014 |
| 6.05879 | 13.4099 | 3.9725 |
