Parameter (X axis): θ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8125 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

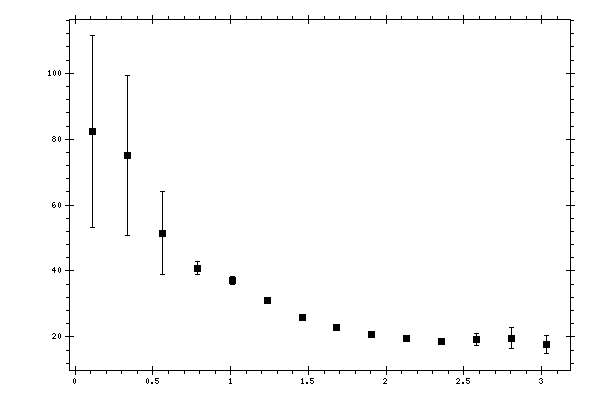

Measured data:
|
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 82.2755 | 29.1044 |
| 0.336599 | 75.0928 | 24.3175 |
| 0.560999 | 51.4978 | 12.6128 |
| 0.785398 | 40.9029 | 1.94221 |
| 1.0098 | 37.0449 | 1.23488 |
| 1.2342 | 30.915 | 0.738067 |
| 1.4586 | 25.8329 | 0.6849 |
| 1.683 | 22.8654 | 0.60328 |
| 1.9074 | 20.7706 | 0.483837 |
| 2.1318 | 19.6234 | 0.478911 |
| 2.35619 | 18.5159 | 0.53275 |
| 2.58059 | 19.1608 | 1.75833 |
| 2.80499 | 19.6409 | 3.25332 |
| 3.02939 | 17.801 | 2.74298 |
