Parameter (X axis): θ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8125 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb
Parameter (X axis): θ(p), rad |
Click here to get data in text file, delimited with tabs.

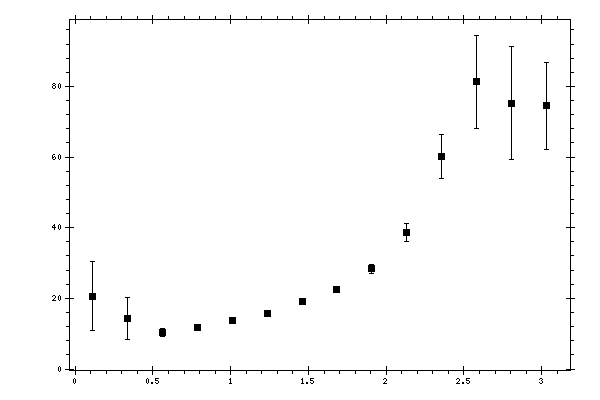

Measured data:
|
θ(p),
rad |
dσ/d(−cos(θ(p))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 20.5825 | 9.70755 |
| 0.336599 | 14.4093 | 5.92403 |
| 0.560999 | 10.3343 | 1.25687 |
| 0.785398 | 11.6808 | 0.420544 |
| 1.0098 | 13.7384 | 0.0528145 |
| 1.2342 | 15.8412 | 0.0175948 |
| 1.4586 | 18.9867 | 0.093812 |
| 1.683 | 22.6005 | 0.380312 |
| 1.9074 | 28.389 | 1.2665 |
| 2.1318 | 38.6492 | 2.50838 |
| 2.35619 | 60.1611 | 6.34235 |
| 2.58059 | 81.3377 | 13.1574 |
| 2.80499 | 75.2456 | 15.9232 |
| 3.02939 | 74.5028 | 12.3267 |
