Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

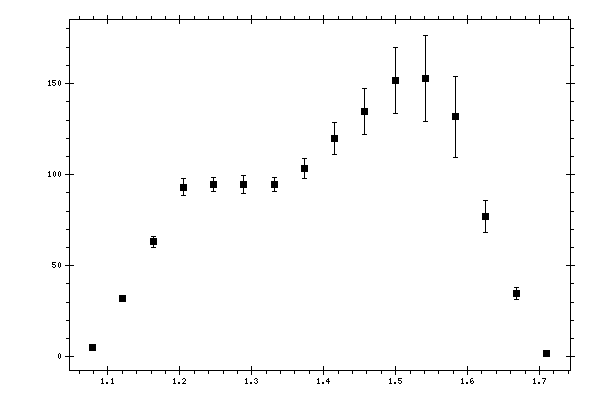

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.07885 | 4.95672 | 0.17257 |
| 1.12089 | 31.9882 | 1.50044 |
| 1.16293 | 63.0405 | 2.80918 |
| 1.20496 | 93.0503 | 4.62488 |
| 1.247 | 94.648 | 3.7034 |
| 1.28904 | 94.4192 | 5.01298 |
| 1.33108 | 94.5999 | 3.85468 |
| 1.37312 | 103.404 | 5.5865 |
| 1.41515 | 119.914 | 8.70705 |
| 1.45719 | 134.759 | 12.7739 |
| 1.49923 | 151.63 | 18.2246 |
| 1.54127 | 152.791 | 23.4324 |
| 1.58331 | 131.837 | 22.2486 |
| 1.62534 | 77.136 | 8.75194 |
| 1.66738 | 34.8871 | 3.22062 |
| 1.70942 | 1.97898 | 0.0262665 |
